The Articulated Path of the Single Pull-Out Drawer
Articulated drawer path design represents the pinnacle of cabinetry mechanics, defining the sophisticated journey a drawer takes from its closed position to full extension. Basically, this is not merely about linear movement; it is a precisely engineered trajectory, governed by an intricate system of slides, bearings, and dampers. Furthermore, understanding this engineered travel is fundamental to appreciating the seamless functionality and quiet elegance of modern furniture and cabinetry. Actually, the quality of a piece is often betrayed by the feel of its drawers, making the study of their path of motion essential for designers, builders, and discerning homeowners alike. In this way, the pull-out mechanism’s articulation transforms a simple storage box into a responsive and integral component of the living space.
### The Fundamental Mechanics of Drawer Movement
Basically, at the core of any drawer’s movement is the slide mechanism, a device that facilitates low-friction linear motion. First, these mechanisms are typically composed of two or more interlocking members that telescope, or slide, relative to one another. Furthermore, one member attaches to the stationary cabinet carcase, while the other attaches to the drawer box itself. As a result, the interaction between these parts dictates the smoothness, stability, and extension of the drawer. Specifically, the most common systems involve either roller slides or ball-bearing slides. For example, roller slides use plastic or nylon wheels that travel along a track, offering a simple and cost-effective solution. Conversely, ball-bearing slides employ rows of steel ball bearings housed within a cage, which results in a significantly smoother and more stable action, capable of handling much heavier loads.
### Exploring Ball-Bearing Telescopic Slides
Moreover, the ball-bearing slide is the workhorse behind most high-quality drawer systems, enabling a truly sophisticated glide path. Specifically, these are often “telescopic,” meaning they consist of three or more sections that slide past each other. Consequently, this design allows for full extension, where the entire drawer box can clear the cabinet opening, granting complete access to its contents. In addition, the precision-machined ball bearings minimize friction, creating a silent and effortless glide that feels fluid and controlled. Therefore, the load-bearing capacity of these slides is a critical factor, determined by the thickness of the steel, the size of the bearings, and the overall construction. Also, high-quality slides can support loads exceeding one hundred pounds, making them suitable for everything from delicate jewelry drawers to heavy-duty pot and pan organizers.
### The Distinction of Undermount Systems
Additionally, for the ultimate in aesthetic refinement, designers often specify undermount drawer slides. Basically, unlike traditional side-mount slides that are visible when the drawer is open, undermount slides are installed beneath the drawer box, rendering them completely concealed from view. In this way, this approach preserves the clean lines of the cabinetry and allows the beauty of the drawer’s wood or material to be fully appreciated. Furthermore, undermount systems often incorporate the most advanced features, such as integrated soft-close mechanisms and push-to-open functionality. Previously, achieving this clean look required complex custom woodworking. Subsequently, the modern engineered travel of these slides offers a standardized solution for achieving a high-end, minimalist aesthetic. Even the sense of quality is enhanced, as the drawer appears to float open and closed with no visible means of support, a detail that resonates with the principles behind seamless installations like those found in Vanishing Point The Architecture of Trimless Recessed Lighting, where the hardware and infrastructure disappear to elevate the design.
### Full Extension Versus Over-Travel Paths
Generally, the extent to which a drawer opens is a critical aspect of its functionality. First, the most common standard in quality cabinetry is full extension. Specifically, this means the drawer box travels the full depth of the slide, allowing the back of the drawer to be flush with the cabinet face. As a result, every inch of storage space becomes easily accessible. However, in certain applications, an “over-travel” slide might be necessary. Specifically, an over-travel slide allows the drawer to extend even further out of the cabinet, typically by an extra inch or more. For example, this is particularly useful when a countertop has a large overhang, or when the drawer is located next to a bulky appliance handle that could obstruct access. Conversely, partial extension slides, which only allow the drawer to open about three-quarters of its depth, are typically found in lower-cost furniture and are less desirable for functional spaces like kitchens.
### The Role of Materials in Durability
Furthermore, the material composition of the drawer slide is paramount to its longevity and performance. Basically, the vast majority of high-quality slides are made from cold-rolled steel. Therefore, this material provides an excellent balance of strength, rigidity, and cost-effectiveness. Additionally, a zinc plating or other protective coating is applied to the steel to prevent corrosion and rust, which is especially important in humid environments like kitchens and bathrooms. In addition, for applications requiring maximum corrosion resistance, such as outdoor cabinetry or marine environments, stainless steel slides are the preferred choice. Although more expensive, stainless steel offers superior protection against the elements, ensuring the complex movement path remains smooth and reliable for years. Besides these, some components, like the ball-bearing cages or soft-close dampers, may be made from durable polymers engineered for quiet operation and long-term wear resistance.
### Soft-Close: The Silent Revolution
Moreover, one of the most significant advancements in drawer technology has been the widespread adoption of the soft-close mechanism. Essentially, this feature consists of a damper, typically a fluid- or air-based piston, integrated into the drawer slide. As a result, when the drawer is closed with a certain velocity, the damper engages during the last few inches of travel. Subsequently, it gently and silently pulls the drawer fully shut, preventing it from slamming. Therefore, this not only creates a more peaceful and luxurious user experience but also reduces wear and tear on both the drawer and the cabinet frame. Likewise, it helps keep the contents of the drawer from shifting and becoming disorganized. Actually, the integration of this technology has transformed the user’s interaction with cabinetry from a potentially noisy and abrupt action into a smooth, controlled, and satisfying one.
### Push-to-Open for a Handleless Aesthetic
Conversely, for a truly minimalist design, push-to-open technology provides a solution for eliminating all external hardware. Basically, this system uses a spring-loaded mechanism that is triggered by a gentle press on the drawer front. Specifically, upon being pressed, the mechanism releases and pushes the drawer open by a few inches, allowing the user to then pull it out fully. In this case, to close the drawer, one simply pushes it back until the mechanism re-engages and latches. In this way, this technology is central to achieving the clean, uninterrupted surfaces popular in contemporary and modern design. Simultaneously, the sophisticated engineering required for these systems must be robust enough to withstand tens of thousands of cycles without failure. Actually, the resulting effect is a kind of responsive automation, where the furniture reacts to a simple touch, much like the sophisticated, pre-programmed responses in The Choreographed Glow of Automated Lighting Scenes, creating a seamless and intuitive user experience.
### The Critical Importance of Precision Installation
Nevertheless, even the most expensive and well-engineered drawer slides will fail to provide a smooth drawer path if not installed with absolute precision. Specifically, the slides must be mounted perfectly parallel to each other and perfectly level. Furthermore, the cabinet box itself must be square. Consequently, any deviation, even by a fraction of an inch, can cause the drawer to rack, bind, or wobble as it moves. As a result, this not only degrades the user experience but also places undue stress on the slides and bearings, leading to premature failure. Therefore, professional installation is often recommended, as it requires specialized tools like levels, jigs, and laser measures to ensure perfect alignment. In addition, the installer must account for the specific tolerances and clearances required by the slide manufacturer, which vary between side-mount, undermount, and push-to-open systems.
### Understanding Load Ratings and Dynamic Forces
Additionally, a crucial specification for any drawer slide is its load rating, which indicates the maximum weight the slides can support without compromising their function. Actually, these ratings are typically given for both static (when the drawer is closed) and dynamic (when the drawer is in motion) conditions. Basically, the dynamic load rating is the more important figure for practical use. Furthermore, it is essential to choose a slide with a rating that comfortably exceeds the anticipated weight of the drawer and its contents. For example, a drawer intended for heavy items like cast iron skillets or stacks of ceramic plates requires a heavy-duty slide with a rating of 100 pounds or more. Conversely, a small drawer for office supplies or cutlery can use a standard-duty slide. Actually, under-specifying the load rating is a common mistake that leads to sagging, difficult operation, and eventual collapse of the drawer mechanism.

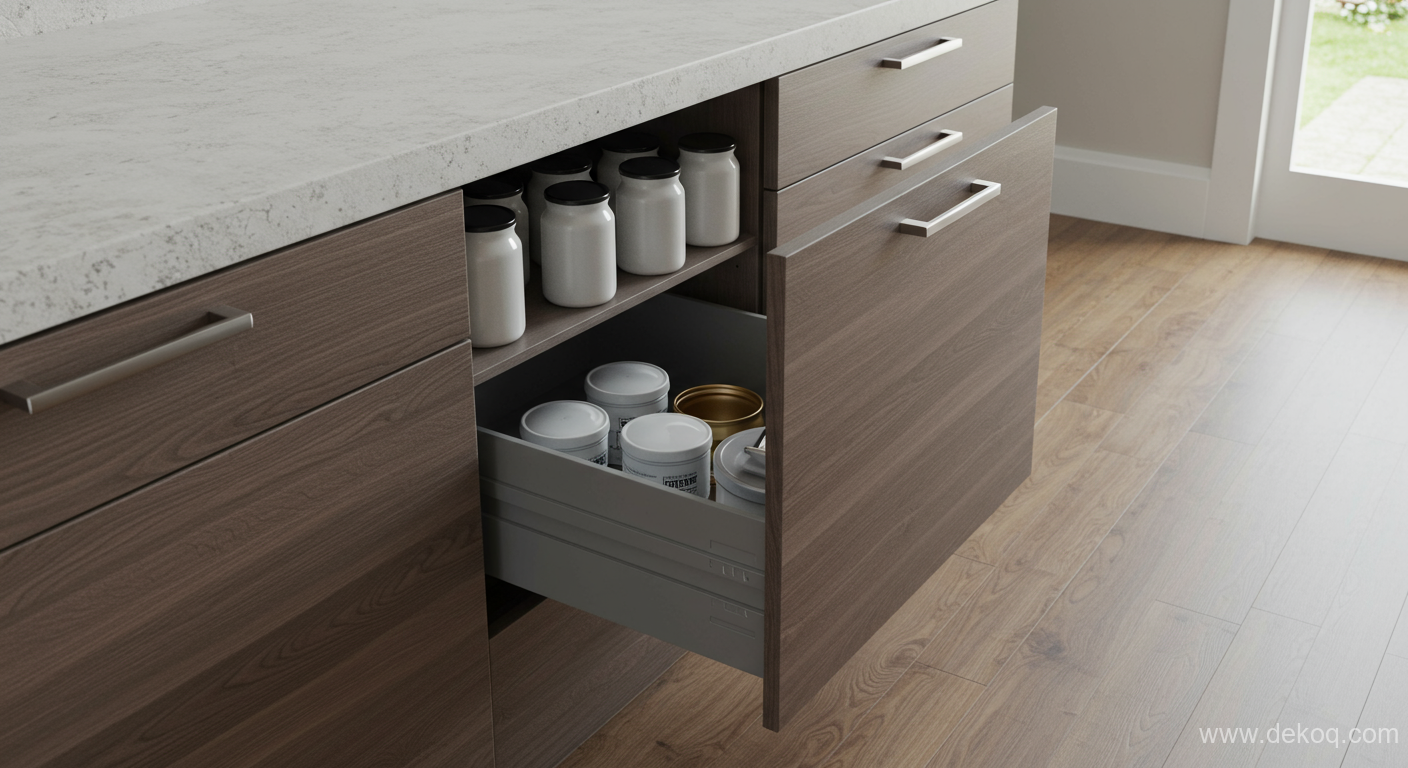

### The Articulated Drawer Path in Kitchen Design
Specifically, nowhere is the importance of a well-engineered articulated drawer path more evident than in kitchen design. In this case, modern kitchens increasingly favor deep, wide drawers over traditional base cabinets with doors. Therefore, this configuration provides far more accessible and ergonomic storage. However, these large drawers, when filled with pots, pans, and dishes, can become incredibly heavy. Consequently, only high-quality, full-extension, heavy-duty ball-bearing slides can handle such demands while providing an effortless and safe user experience. In addition, features like soft-close are considered standard in contemporary kitchens, preventing the loud crashing of heavily-laden drawers. Afterwards, this focus on functional hardware ensures that the kitchen is not only beautiful but also a highly efficient workspace. The complete accessibility offered by full-extension slides allows for meticulous organization, making it easy to see and retrieve every item, which is a principle of good design also reflected in the thoughtful arrangement of objects discussed in Curating the Surface The Composition of a Decorative Tray.
### Advanced Motion Technologies and Integration
Moreover, the evolution of the drawer’s travel mechanism continues with the integration of electronic components. Specifically, servomotor-assisted systems, such as Blum’s Servo-Drive or Grass’s Sensotronic, offer the ultimate in convenience. Basically, with just a light touch on the drawer front or a pull of the handle, an electric motor engages to power the drawer open smoothly and silently. Furthermore, these systems often combine the electronic opening with a soft-closing damper for a completely controlled and effortless motion in both directions. Although, these technologies represent a significant investment and are typically found in ultra-high-end custom cabinetry. Nevertheless, they point towards a future where our interaction with furniture becomes even more intuitive and physically effortless, blending mechanical engineering with smart home technology. Simultaneously, this advanced choreography of movement further elevates the perception of quality and luxury within a space.
### Beyond the Kitchen: Diverse Applications
Although kitchens are a primary showcase, the sophisticated glide path of modern drawers is crucial in many other areas of the home and office. First, in a custom closet system, full-extension slides on jewelry, tie, and accessory drawers ensure every item is visible and accessible. Second, in a home office, file drawers require heavy-duty slides that can withstand the significant weight of paper and operate smoothly thousands of times. Third, in a workshop or garage, tool chests with deep, heavy drawers rely on robust ball-bearing slides to provide reliable access to tools. Besides these, even in living room furniture, such as media consoles and sideboards, a smooth and silent drawer action contributes to the overall sense of quality and refinement. In this way, the underlying principles of a well-engineered path of motion apply to any application where stored items need to be accessed easily and reliably.
### Maintaining the Smoothness of the Path
Furthermore, to ensure the longevity of a drawer’s kinetic journey, periodic maintenance can be beneficial, though modern slides are largely designed to be maintenance-free. Basically, the most important step is to keep the slide mechanism clean. Therefore, dust, debris, and kitchen grime can accumulate in the tracks and on the ball bearings over time, leading to a gritty or hesitant motion. Specifically, a soft cloth, a vacuum with a brush attachment, or a can of compressed air can be used to gently clean the slides. Conversely, it is generally not recommended to apply lubricants like oil or grease to most modern ball-bearing slides. In fact, these lubricants can attract more dust and dirt, eventually gumming up the mechanism and worsening its performance. Therefore, if a slide is not operating smoothly after cleaning, it may indicate a problem with installation alignment or internal wear, potentially requiring adjustment or replacement.
### The Future of Drawer Movement
In conclusion, the path of a single pull-out drawer is a testament to decades of innovation in mechanical engineering and material science. Previously, drawers were simple wooden boxes that scraped along a wooden runner. Afterwards, the development of roller systems, and subsequently the refinement of telescopic ball-bearing slides, has completely transformed the experience. Actually, the journey from a basic function to a sophisticated, sensory experience marked by silent, smooth, and controlled motion is remarkable. Furthermore, as designers continue to push for cleaner aesthetics and more integrated technology, the drawer slide will continue to evolve. Therefore, we can expect to see even more refined mechanisms, smarter electronic integrations, and new materials that offer enhanced durability and performance. Ultimately, the humble drawer slide is a perfect example of a hidden component that, when engineered correctly, has a profound impact on the quality, functionality, and luxury of an entire space. For those interested in exploring the technical specifics further, you can Search on Google for detailed specifications or Watch on YouTube for visual demonstrations of these mechanisms in action.
